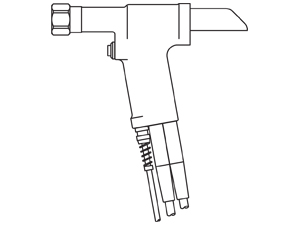

Riveting l Hydraulic Installation Tools l 2502 / 2480 / 2503
 |
Hydraulic Installation Tools Designed for high volume productivity, these tools have the highest power-to-weight ratios in their class. Mated with one of the POWERIG© systems, they’ll pull fasteners of 1/8” to 1/2” diameter with extraordinary comfort for production technicians. PN: Model 2502 |
|||
Model |
Applications |
Stroke |
Weight |
Pull Pressure |
Return Pressure |
Pull Capacity |
Available Versions |
206-375 |
Up to 1/4” blind rivets/bolts, lockbolts |
.375” |
3.37 lbs. |
5400-5700 psi |
2200-2400 psi |
5880 lbs. |
206-375-with electric trigger A206-375-with air trigger |
2502 |
Up to 3/8” blind rivets/bolts, lockbolts |
.750” |
4.5 lbs. |
5400-5700 psi |
2200-2400 psi |
7000 lbs. |
2502-with electric trigger A2502 with air trigger |
2480 |
Up to 1/4” blind bolts, blind rivets and lockbolts |
.875” |
2.2 lbs. |
N/A |
N/A |
5700 lbs. |
2480-with electric trigger A2480-with air trigger 2481-with top mounted hoses |
2503 |
Up to 3/8” blind rivets, bolts, lockbolts |
1.5” |
4.62 lbs. |
5400-5700 psi |
2200-2400 psi |
7000 lbs. |
2503-with electric trigger A2503-with air trigger |
208-625 |
Up to 3/8” blind rivets/bolts, lockbolts |
.625” |
3.96 lbs. |
5400-5700 psi |
2200-2400 psi |
10000 lbs. |
208-625-with electric trigger A208-625 with air trigger |
